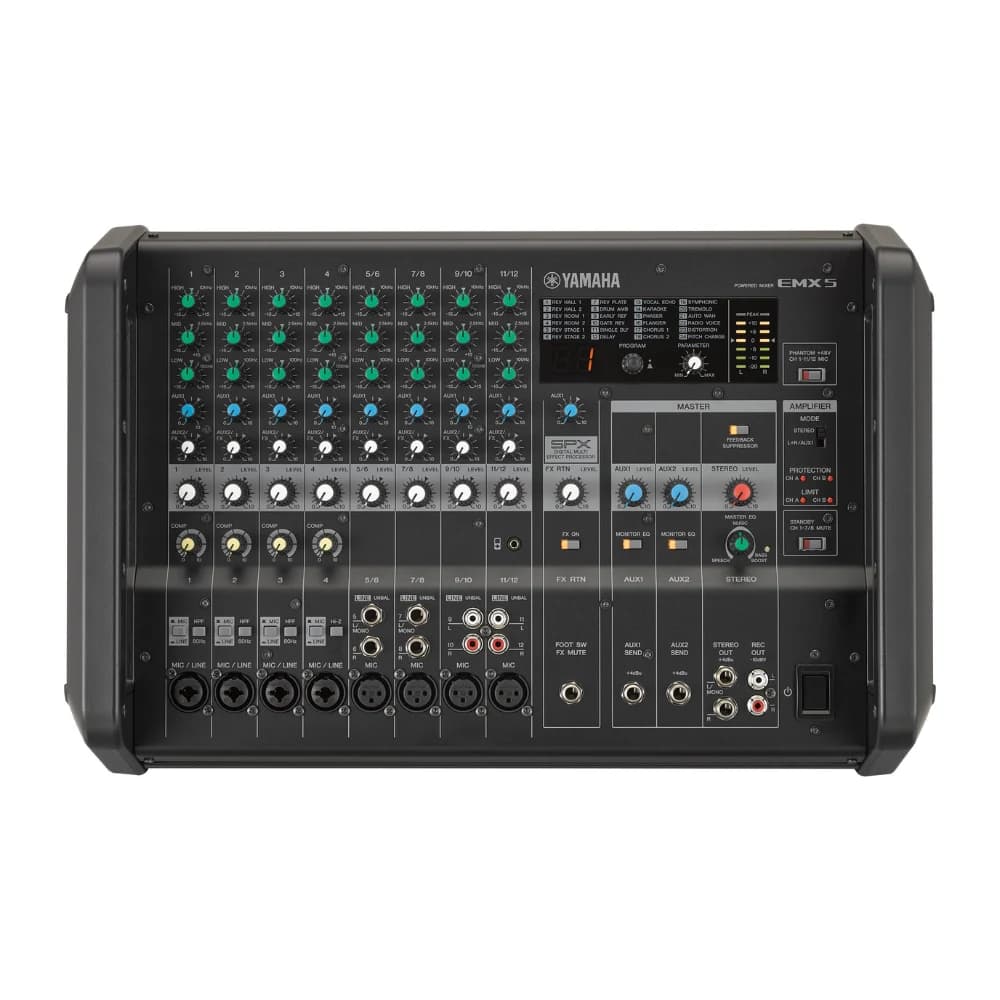

پاور میکسر EMX5
پاور میکسر یاماها مدل EMX5، از سری EMX.
- برند
- یاماها
- دسته‌بندی
- سری EMX
- گارانتی
- شرکت یاماها ایران
این محصول در حال حاضر امکان خرید ندارد.
نقد و بررسی
پاور میکسر EMX5 یاماها
پاور میکسر یاماها مدل EMX5، از سری EMX.
مشخصات فنی
| On-board amplifiers / Maximum output power @4ohms | 1kHz THD+N less than 10% (CEA2006) : 630 W + 630 W, 1kHz THD+N less than 1% (CEA2006) : 500 W + 500 W |
|---|---|
| On-board amplifiers / Maximum output power @8ohms | 1kHz THD+N less than 10% (CEA2006) : 460 W + 460 W, 1kHz THD+N less than 1% (CEA2006) : 370 W + 370 W |
| ورودی و خروجی / Inputs | TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE) |
| ورودی و خروجی / تغذیه فانتوم | +48 V |
| ورودی و خروجی / Outputs | SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R] |
| ورودی و خروجی / Control and others | FOOT SWITCH : Effect Mute on/off |
| Bus | Stereo: 1, AUX: 2 (Including FX) |
| Input Channel Function / PAD | 30 dB (CH1-4) |
| Input Channel Function / Hi-Z | Supported (CH4) |
| Input Channel Function / HPF | 80 Hz, -12 dB/oct. (CH1–3) |
| Input Channel Function / COMP | 1-knob COMP (CH1–4) |
| Input Channel Function / EQ HIGH | 10 kHz +15 dB / -15 dB (Shelving) |
| Input Channel Function / EQ MID | 2.5 kHz +15 dB / -15 dB (Peaking) |
| Input Channel Function / EQ LOW | 100 Hz +15 dB / -15 dB (Shelving) |
| پردازشگرهای داخلی / DSP | SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ |
| Level Meter | 2 × 7 points LED meter (-20, -10, -6, 0, +6, +10, PEAK) |
| Frequency response | Input to SPEAKERS : +1 dB/-3 dB (40 Hz to 20 kHz), Input to STEREO OUT, AUX1 SEND, AUX2 SEND : +0.5 dB/-1 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz |
| Total harmonic distortion | Input to SPEAKERS: 0.1% @ 10 W (40 Hz to 20 kHz), 0.05% @ 50 W (1 kHz) ; Input to STEREO OUT, AUX1 SEND, AUX2 SEND: 0.03% @ +14 dBu (20 Hz to 20 kHz), 0.007% @ +20 dBu (1 kHz), (THD+N, measured with 22 kHz LPF) |
| Hum & noise level / Equivalent input noise | -117 dBu (Noise is measured with A-weighting filter) |
| Hum & noise level / Residual output noise | Input to SPEAKERS : -66 dBu (40Hz to 20kHz, STEREO MASTER LEVEL: min); Input to STEREO OUT, AUX1 SEND, AUX2 SEND : -80 dBu (20Hz to 20kHz, STEREO MASTER LEVEL: min) (Noise is measured with A-weighting filter) |
| نشت بین کانال‌ها | -85 dB (1 kHz, Measured with 1 kHz band pass filter) |
| Protection circuit / Load protection | DC-fault |
